Vacuum Distillation Apparatus- 50L Rotary Evaporator R-1050

Place of Origin : China

Brand Name : Greatwall

Certification : ISO 9001:2008

Model Number : R-1050

MOQ : 1 sets

Price : US $5,331 - 5,924 / Set

Packaging Details : Plywood box

Delivery Time : within 15 days after receiving the payment

Payment Terms : T/T

Supply Ability : 300 sets/month

Contact Now

50L Vacuum Distillation Apparatus R-1050(One year warranty)

Product Description

A rotary evaporator is a device used in chemical laboratories for the efficient, gentle removal of solvents from samples by evaporation. Rotary evaporator is most often used to separate solvents with low boiling points, such as n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior), and a sufficient different in boiling points at the chosen temperature and reduced pressure.

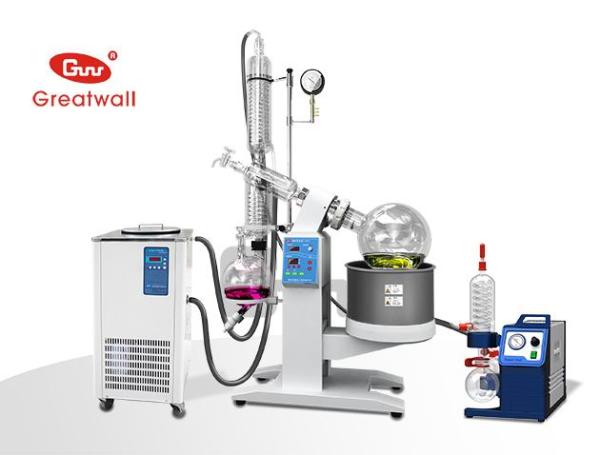

Picture of 50L vacuum distillation apparatus R-1050:

Vacuum Distillation Apparatus- 50L Rotary Evaporator R-1050

Specifications of 50L vacuum rotary evaporator:

Model	R-1005		R-1010		R-1020		R-1050
Rotary Bottle	5L,diameter of flange opening: Φ50mm		10L,diameter of flange opening:Φ95mm		20L, diameter of flange opening:Φ125mm		50L,diameter of flange opening:Φ125mm
Collecting bottle	3L		5L		10L		20L
Speed-regulation of main machine	Digital display, DC stepless speed-regulation
Rotary speed of main Machine	20 to140r/min,digital display of rotary speed	20 to130r/min,digital display of rotary speed		20 to130r/min,digital display of rotary speed		20 to110r/min,digital display of rotary speed
Rotaring motor(W)	250W
Condensing tube	Vertical type water refrigerating		Standing,main+auxiliary cooling and highly effcient3 circulating coldtrap
Heating boiler	stainless steel water bath oil bath
Temperature control	Digital display, temperature control,water bath: 0~99℃ Oil bath: RT~180℃
Achievable vacuum	399.9Pa (below 3mmHg)
Evaporating capability	Water≥2L/h Ethanol≥4L/h		Water≥3.2L/h Ethanol≥6.5L/h		Water≥5L/h Ethanol≥11L/h		Water≥9L/h Ethanol≥19L/h
Elevating function	Electric elevation						Electric + manual elevation
Elevating stroke	0~150mm		0~160mm		0~190mm		0~180mm
Rated power supply	1~220V/50Hz,60Hz				1~220V/50Hz,60Hz , 3~380V/50Hz
Power of power supply	2.3KW		3.8KW		6.3KW		6.3KW

Features of vacuum rotary evaporator:

Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
Specialized motor with compact intermeshed worm and worm gear provide precise, vibration-free operation.
Modular design(individual rotary and water bath modules) for easy future upgrade.
Easy multi-level manual evaporating flask lifting with lock.
Operate visually and easily with digital speed and temperature display.
PID temperature controller for accurate temperature control.
One year warranty and lift time service support.

Vacuum Distillation Apparatus- 50L Rotary Evaporator R-1050

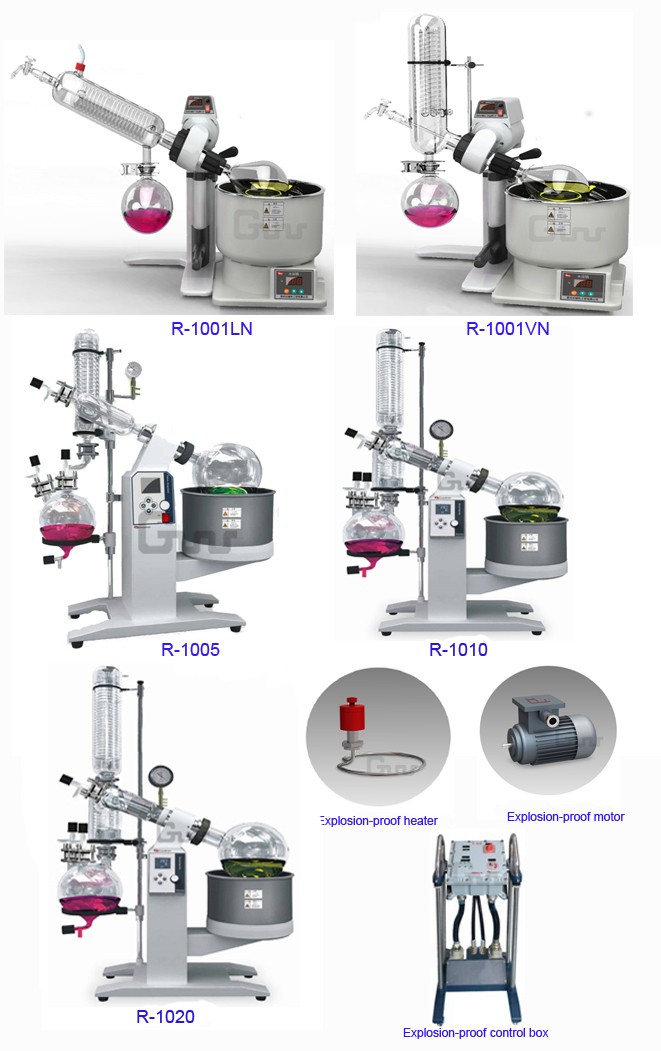

Other Models
